MOTOBOX 2 – AN ACCESSORY OF MOTOSCAN TO REPAIR, REINSTALL AND UPGRADE THE ECU FIRMWARE FOR MOTOCYCLE/ SCOOTER

WHAT IS NEW IN MOTOBOX 2 ?

• Check electronic components inside ECM fast, independent and accurate for PGM-FI motorbikes (you need buy add-in cables)
• Check Hall CKP sensor, IACV/ ISCV fast, independent and accurate for HONDA, YAMAHA, PIAGGIO/ VESPA… (you need buy add-in cables)
• Reprogram and upgrade standard software of HONDA, PIAGGIO/ VESPA
• Adjust A/F ratio for HONDA (updating…)
• Adjust ODO value for almost motorbikes
• Simulate ECU signal (Input, Output, Digital, Analog, Kline) to diagnose, adjust and repair

● INTRODUCTION

Today, most Motorcycles and Scooters are using engine control by electronic technology with microprocessors. To determine the trouble is very difficult complex, can’t seen and diagnosis by “clinical” method such as conventional mechanical repair before. The ECM firmware repair is easiest if you have special tool for reinstallation or upgrade.
– The sensors, actuators and electronic control unit will be information together by special electrical signals in an overall link and self-contained, so the repairs independent electronic is very difficult to do when you don’t have tools.
– One other way, electronic repairman for motorcycle and scooters very need to have signal simulator and tested pulses to confirm the their diagnosis is completely accurate before ordering multiple days for the purchase new replacement parts as sensors for ECT / EOT, MAF, MAP, TPS, O2S, CKP, IACV, Injectors and ECU…
-Moreover, electronic repairman for motorcycle and scooters need to have signal pulse generator dedicated the motorcycle that is able to adjust in large range to check, diagnose, calibrate to repair hardware of electronic functional units as the ECU, solenoid valve continuous strip, electronic injectors, step motors …
– To solve the problems mentioned above. We are pleased to introduce a new product: MOTOBOX – Product code: MT0006

MOTOBOX is the name of an electronically accessory is research, manufacture success in 2015. This is one of application product line advanced science and technology to life by Group Technology DTDAuto, Institute of Physics developed over the years are posted on the website: www.dtdauto.com

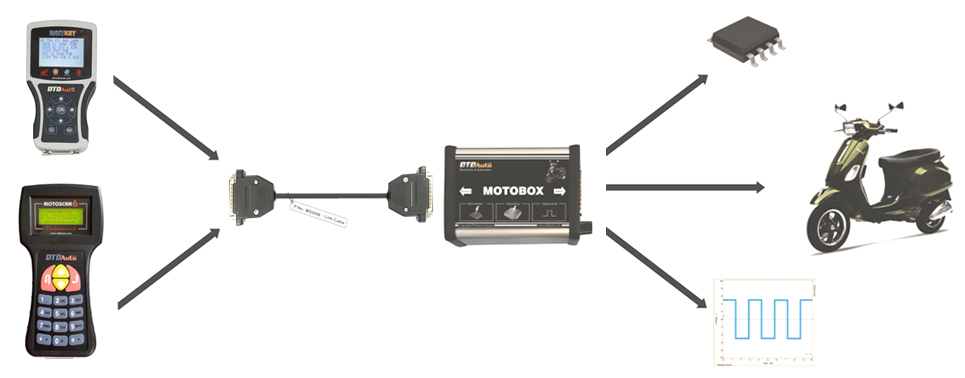

MOTOBOX MOTOBOX designed as a accessory that hardware add in and compatible with MOTOSCAN, EASYKEY handheld (since version 5.7) and MOTODATA software on Smartphone to support data and advanced functions for repairing of motorcycles and new generation scooters.

MOTOBOX used for motorcycle repair workshop and professional training vocation to repair, programmable electrical systems in Vietnam and other countries around the world.

The product designed beautiful, strong, compact integrated, low cost, suitable for all repair workshops.

● APPLICATION RANGE

– Used to repair hardware and firmware inside the ECU for motorcycles and scooters in repair workshop.
– Used as a training equipment in motorcycle technical training center. MOTOBOX an intensive fittings for electrical engineering and electronics in the repair workshop to repair ECU hardware, reprogram ECU firmware and calibrate specifications.
– An advanced accessory add in for MOTOSCAN since 2015

● MOTOBOX CABLE OPTIONS

● FUNCTION

1. Simulate the input signals of ECU
– Digital signals and Analog signals: Generating the digital TTL signal to simulate the electromagnetic sensor signals and Hall effect sensors such as vehicle speed sensor (VSS), the wheel speed sensor (for ABS), crankshaft position sensor (CKP), camshaft sensor (CMP) etc … the signals can simulate changes amplitude, frequency, amount of teeth and ring gear for most kinds of sensor rotors.
– Analog voltage signals change slowly, including wide range and narrow range Simulation Analog signal voltage in the range (0V to 5V) to simulate the signals such as engine temperature sensor (ECT), intake air temperature sensor (IAT), throttle position (TPS), intake manifold absolute pressure sensor (MAP) and intake air flow sensor (MAF) and Oxygen sensor (O2S).

2. Simulate the output signal of ECU
Simulate electromagnetic pulse to control the actuators such as relays, solenoids valve, Ignition coil, injectors … To correct voltage, amplitude, frequency, similar to the signal carried on the vehicle, effective in the diagnosis, segmentation, exclusion and repairs.

3. Programming to correct value of digital speedometer (ODO) for removable external EEPROM type of HONDA, YAMAHA, SUZUKI motorcycles:
– HONDA: AIR BLADE (2013-2019), AIR BLADE 2020, CBR 250, FUTURE NEO Fi, FUTURE X Fi, LEAD (2013-2019), LEAD 2020, PCX (2008-2013), PCX (2014-2017), PCX 2018, PCX HYBRID, SH 300i, SH MODE (2013-2019), SH 125/150/125D/150D/SM (2013-2017), SH 125/150/125D/150D/SM (2018-2019), SH 125/150/125D/150D/SM (2020), SCOOPY, MSX, VARIO 150, WINNER, WINNER X, X-ADV, DYLAN, ZOOMER X (2013-2017), ZOOMER X (2018-2020), SONIC, WAVE 125 (Thailand), CLICK (2012-2014), CLICK (2014-2017) CLICK (2018-2020), VARIO (2014-2017), VARIO (2018-2020)
– YAMAHA: AEROX, LEXI S, LATTE, FREGO, NVX, NMAX, NMX, JANUS, TFX, EXCITER (2014-2018), EXCITER (2019-2020), ACRUZO, , FZ 150, FZ 150i, GRANDE, NOUVO SX, NOUVO LX, YZF-R3, R15
– PIAGGIO: Medly 125, Medly 150, Medly 125 ABS, Medly 150 ABS, Liberty ABS, Liberty 125 3V PGN04, Liberty 150 3V PGN04, Liberty 125 3V PGT01, Liberty 150 3V PGT01, Liberty 125 3V PGS02, Liberty 150 3V PGS02, Liberty ABS PGS06
– VESPA: Primave 125 PGN04, Primave 150 PGN04, Sprint 125 3V PGN04, Sprint 150 3V PGN04, Sprint 125 3V PGT01, Sprint 150 3V PGT01, Sprint 125 3V PGS02, Sprint 150 3V PGS02
Edit, decode odometer data and convert information automatically in EEPROM

4. Reinstall, repair, upgrade firmware for:
– PIAGGIO/VESPA (it also support GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs): ECM types are AC19I/ AC20I/ AC24I/ AC25I/AC27I/ AC32I, MIU G3/RIU1, PGN04/PGS02/PGT01 and ECM PGQ16*
– HONDA: AIR BLADE 125, LEAD 125, SH MODE, VISION 110, VISION ESP*
– YAMAHA: NVX*

Notes: The advanced functions with an asterisk (*), will appear on the next version

5. Check electronic component inside ECM (you need buy add-in cable)
Test quantity of ECMs for HONDA, YAMAHA, PIAGGIO/VESPA according to the order
